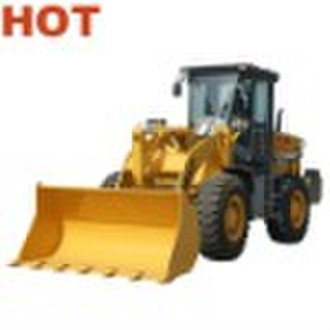

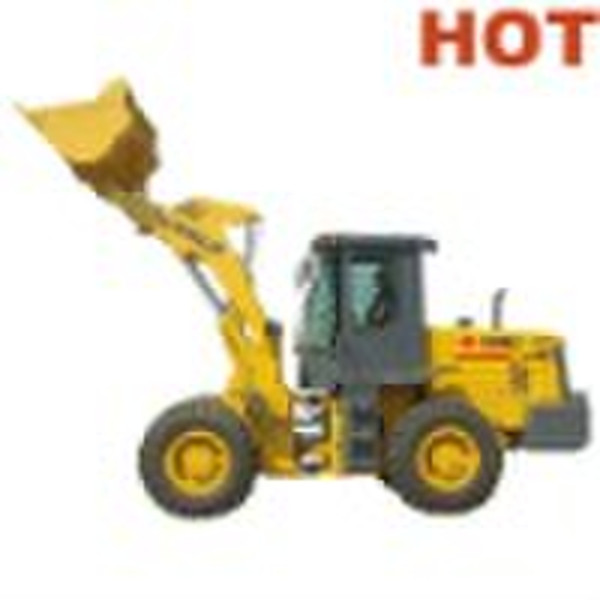

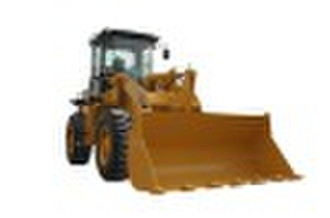

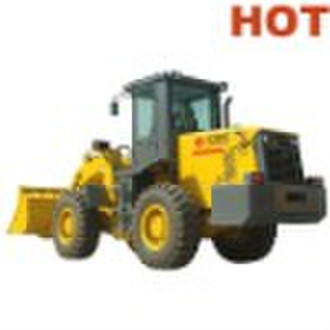

3 ton wheel loader -W136

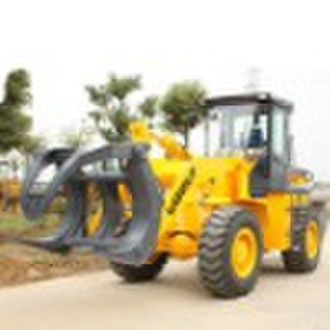

3 ton wheel loader W136, 3200kg rated load, 1.8 or 2.2 cbm bucket capacity, Yuchai or Duetz or Dongfeng Cummins engine, planet type transmission, power shift, 2 forward and 1 reverse shifts. Fenyi brand axle, caliper disc brake, air over oil active 4 wheel brake, full-hydraulic coaxial flowrate amplification steering system, middle articulated frame. Self-made cabin, hood, frame, arm and bucket. With air conditioner. Joystick, log grapple, forks, rock bucket and 4 in 1 bucket are optional. ItemsModel: W136Bucket Capacity (m3)1.8 or 2.2Rated Load (kg)3200Max. Breakout Force (kN)100Max. Traction (kN)97Forward Speed 1st (km/h)0-10.8Forward Speed 2nd (km/h)0-32.5Reverse Speed (km/h)0-14.5Max. Dumping Height (mm)3060Max. Dumping Reach (mm)1008Min. Turning Radius (mm)5376Min. Clearance Over Ground (mm)360Wheel Base (mm)2750Tread Width (mm)1800Total Hydraulic Cycle Time (s)10.3Full Bucket Lifting Time (s)5.6Overall Dimensions (mm)L:6970xW:2245xH:3286Operating Weight (kg)10000Diesel Engine BrandYuchai or Duetz or CumminsTypeDirect injection, water cooling, 4 strokesRated Output (kw)92/92/97Rated Speed (rpm)2200Max. Torque (N.m)460/500/560Transmission TypePlanet typeRated Input Speed (rpm)2200Transaxle & Tire Rear Axle OscillationCenter oscillationOscillating Angle Of Rear Axle (°)12Pressure Of Tire (MPa)0.28-0.32Working Hydraulic System Working Pump TypeGear pumpWorking Pressure (MPa)16Lifting Cylinder Bore x Stroke (mm)125x816Tilting Cylinder Bore x Stroke (mm)140x553Steering System Steering Pump TypeCBY2050 (reverse)Working Pressure (MPa)10Steering Cylinder Bore x Stroke (mm)80x340Max. Steering Angle (°)36
