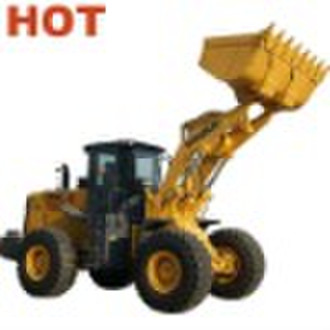

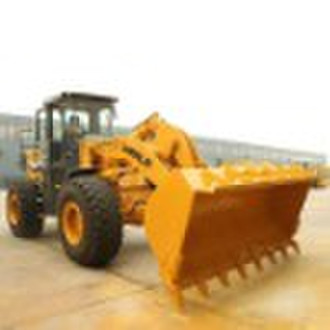

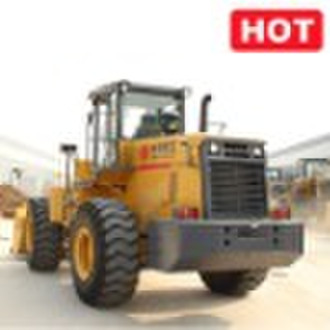

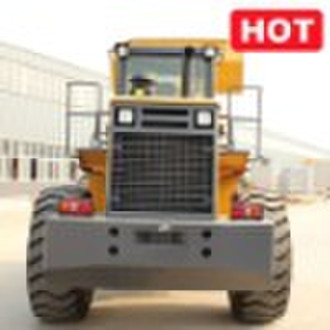

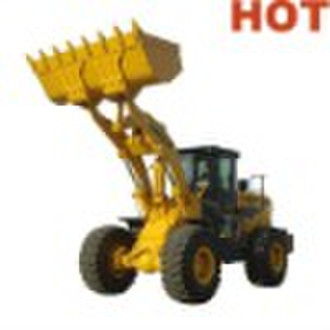

5 ton wheel loader -W156

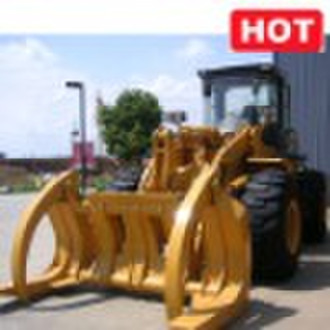

5 ton wheel loader W156, 5000kg rated load, 3 or 3.6 or 4cbm bucket capacity, Weichai Steyr or Shangchai CAT or Dongfeng Cummins engine, Hangzhou Advance brand planet type transmission, power shift, 2 forward and 1 reverse shifts. Caliper disc brake, air over oil active 4 wheel brake, full-hydraulic coaxial flowrate amplification steering system, middle articulated frame. Long wheel base and big breakout force for heavy duty. Self-made transaxle, cabin, frame, arm and bucket. With air conditioner. Joystick, log grapple, forks, quick fitting, rock bucket and 4 in 1 bucket are optional. ItemsModel: W156Bucket Capacity (m3)3.0 or 3.6 or 4.0Rated Load (kg)5000Max. Breakout Force (kN)150Max. Traction (kN)165Forward Speed 1st (km/h)0-11.5Forward Speed 2nd (km/h)0-37.5Reverse Speed (km/h)0-17Max. Dumping Height (mm)2970Max. Dumping Reach (mm)1200Min. Turning Radius (mm)6700Min. Clearance Over Ground (mm)380Wheel Base (mm)3427Tread Width (mm)2300Total Hydraulic Cycle Time (s)11.1Full Bucket Lifting Time (s)5.7Overall Dimensions (mm)L:8075xW:2960xH:3500Operating Weight (kg)16200Diesel Engine BrandWeichai Steyr or Cat6121 or CumminsTypeDirect injection, turbocharged, water cooling, 4 strokes, 6 cylindersRated Output (kw)162/162/160Rated Speed (rpm)2200Max. Torque (N.m)855/860/908Transmission TypePlanet typeRated Input Speed (rpm)2200Transaxle & Tire Rear Axle OscillationCenter oscillationOscillating Angle Of Rear Axle (°)13Pressure Of Tire (MPa)0.28-0.32Working Hydraulic System Working Pump TypeGear pumpWorking Pressure (MPa)17Lifting Cylinder Bore x Stroke (mm)165x757Tilting Cylinder Bore x Stroke (mm)200x540Steering System Steering Pump TypeCBGJ2080Working Pressure (MPa)12Steering Cylinder Bore x Stroke (mm)100x342Max. Steering Angle (°)35
