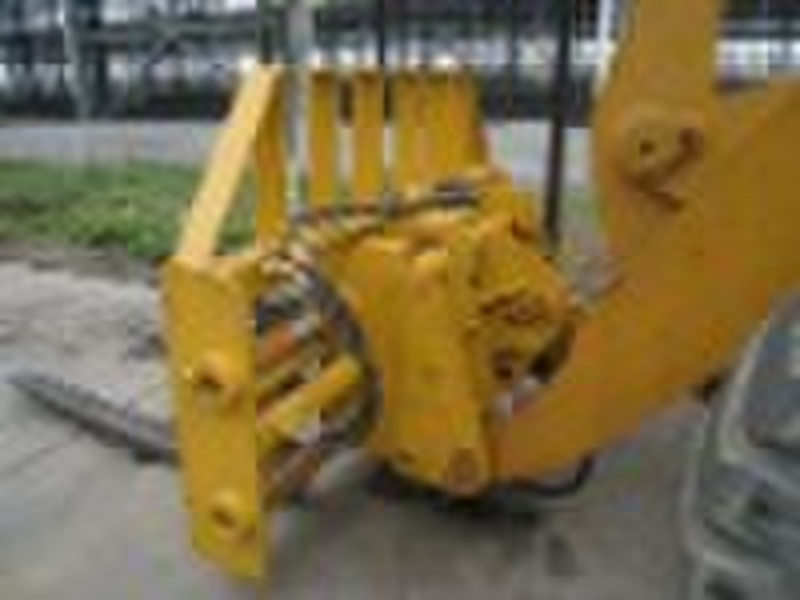

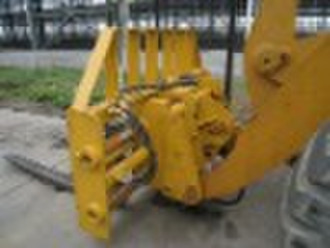

wheel loader with forks
Jack Ow
Contact person
Basic Information
ItemsModel: W156Bucket Capacity (m3)-Rated Load (kg)5000Max. Breakout Force (kN)150Max. Traction (kN)165Forward Speed 1st (km/h)0-11.5Forward Speed 2nd (km/h)0-37.5Reverse Speed (km/h)0-17Max. Dumping Height (mm)2970Max. Dumping Reach (mm)1200Min. Turning Radius (mm)6700Min. Clearance Over Ground (mm)380Wheel Base (mm)3427Tread Width (mm)2300Total Hydraulic Cycle Time (s)11.1Full Bucket Lifting Time (s)5.7Overall Dimensions (mm)L:8075xW:2960xH:3500Operating Weight (kg)16200Diesel Engine BrandWeichai Steyr or Cat6121 or CumminsTypeDirect injection, turbocharged, water cooling, 4 strokes, 6 cylindersRated Output (kw)162/162/160Rated Speed (rpm)2200Max. Torque (N.m)855/860/908Transmission TypePlanet typeRated Input Speed (rpm)2200Transaxle & Tire Rear Axle OscillationCenter oscillationOscillating Angle Of Rear Axle (°)13Pressure Of Tire (MPa)0.28-0.32Working Hydraulic System Working Pump TypeGear pumpWorking Pressure (MPa)17Lifting Cylinder Bore x Stroke (mm)165x757Tilting Cylinder Bore x Stroke (mm)200x540Steering System Steering Pump TypeCBGJ2080Working Pressure (MPa)12Steering Cylinder Bore x Stroke (mm)100x342Max. Steering Angle (°)35
Delivery terms and packaging
Packaging Detail: 1pcs/40HQ Delivery Detail: 4WEEKS
Port: SHANGHAI
